- DN25 (1") MM BSP Inlet and Outlet

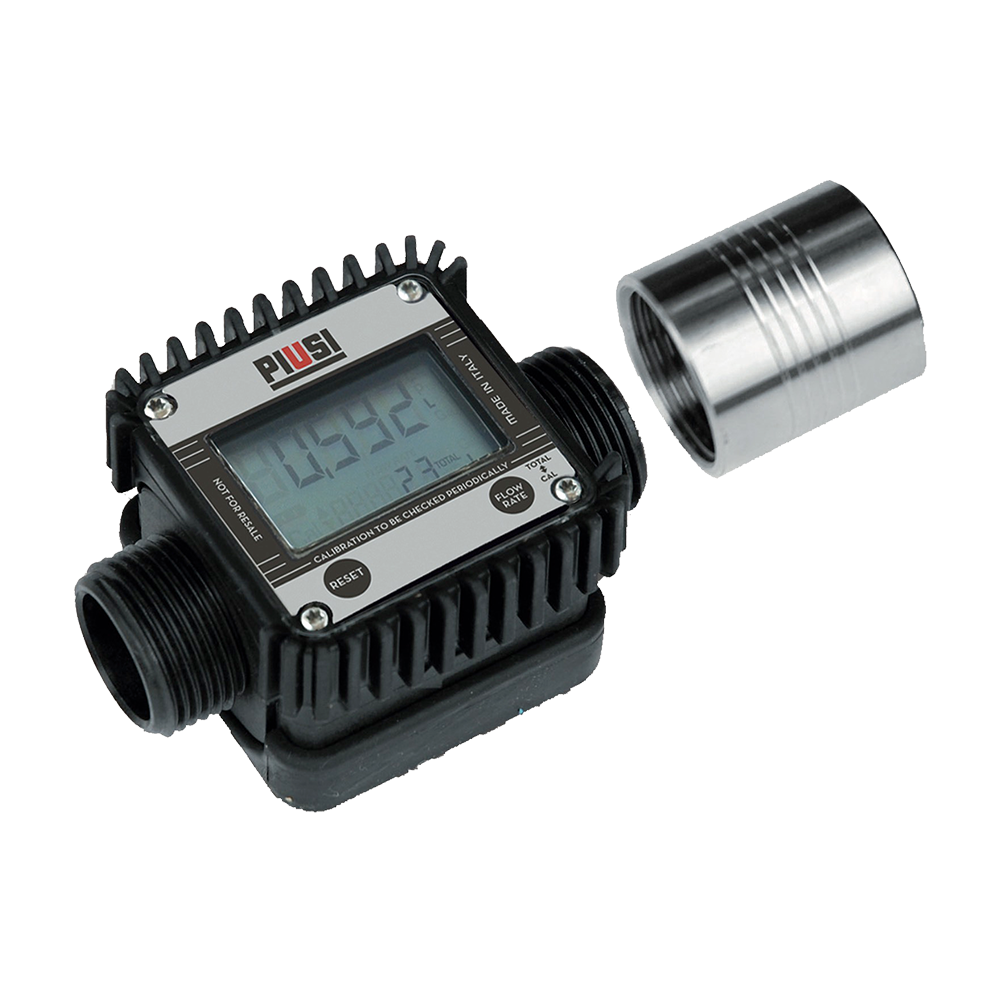

- Supplied with DN25 (1") Socket to facilitate DN25 (1") MF BSP Inlet and Outlet
- Flow Rate - 7-120lpm
- Suitable for use with Diesel
- Accuracy - +/- 1%
- Repeatability - 0.2%
- Rotatable Display
- Technopolymer Body and Gears
- The Piusi K24 is able to be calibrated
- Dimensions - 112.5mm L x 75mm W x 60.5mm H
- Weight - 0.5kg
- Pressure Drop - 0.03 Bar
- Display - Running - 5 Digit 0.1 to 99999
- Display - Totaliser - 6 Digit 1 to 999999
- Working Pressure - 10 Bar (150PSI)
- Batteries - 2 x AAA (included)
- 4 options for volume measurement
- Quarts (Qts),
- Pints (Pts),
- Litres (Lit),
- Gallons (Gal)
- Able to operate in one of two dispensing modes:
- Normal - the meter will display the Running and Totaliser Volumes dispensed
- Flow Rate - the meter will display the Flow Rate of the diesel bewing dispensed and the Running total of the volume of diesel dispensed.
- K24 Meter
- Socket DN25 (1") FF BSP
- Instruction Manual
- 2 x AAA Batteries
What's in the Box

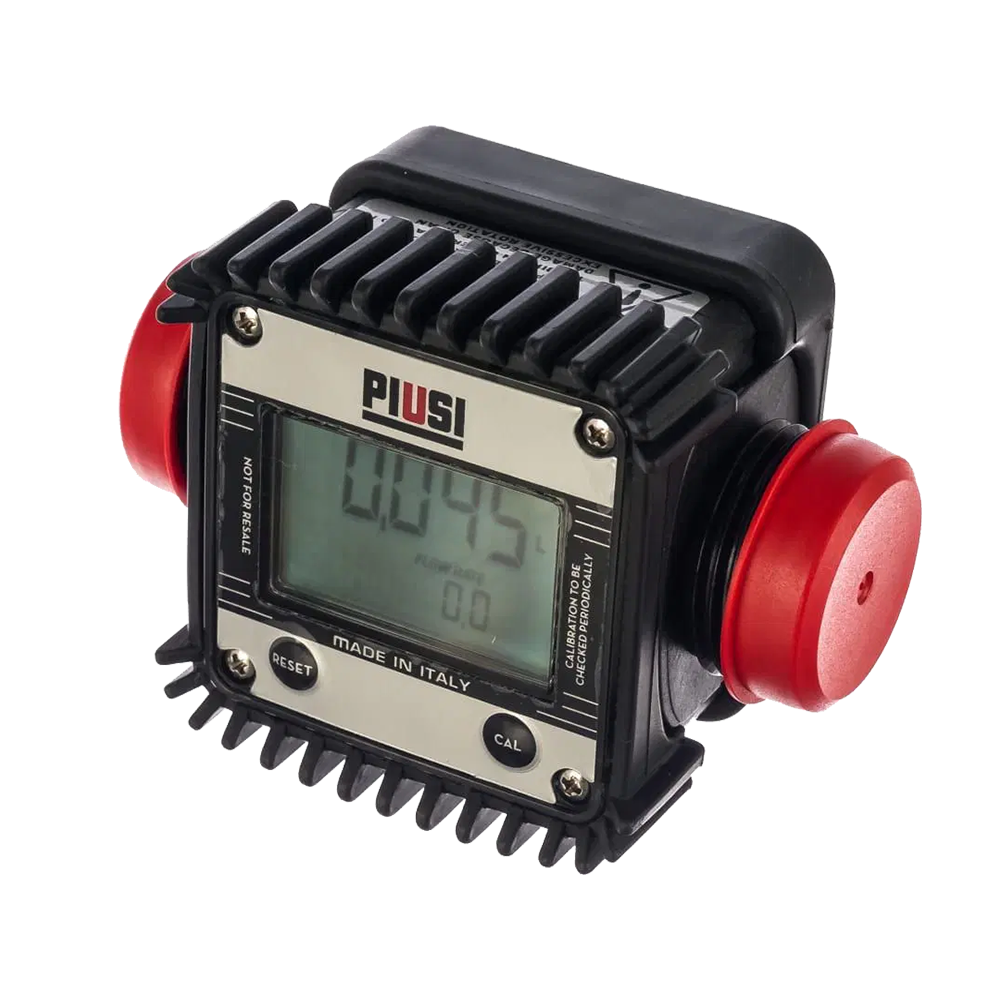

Piusi K24 Digital Flow Meter 7-120lpm F0040700A
SKU: F0040700APiusi K24 Digital Flow Meter 7-120lpm F0040700A
Regular price
$456.00 NZD
Sale price
$456.00 NZD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
The Basics
The Piusi K24 F0040700A Digital Flow Meter, from GO Industrial, is a turbine style of meter designed for use in diesel dispensing applications. The Piusi K24 is supplied with a robust yet lightweight Technopolymer Body. The meter can be configured with DN25 (1") MM BSP Thread, or using the supplied socket DN25 (1") MF BSP Thread.
Customers also purchased
PUMP 240V AC 100lpm PA2
Regular price
$987.00 NZD
Sale price
$987.00 NZD
Regular price
Unit price
per
PIUSI Clear Captor Filter Range
Regular price
$380.00 NZD
Sale price
$380.00 NZD
Regular price
Unit price
per

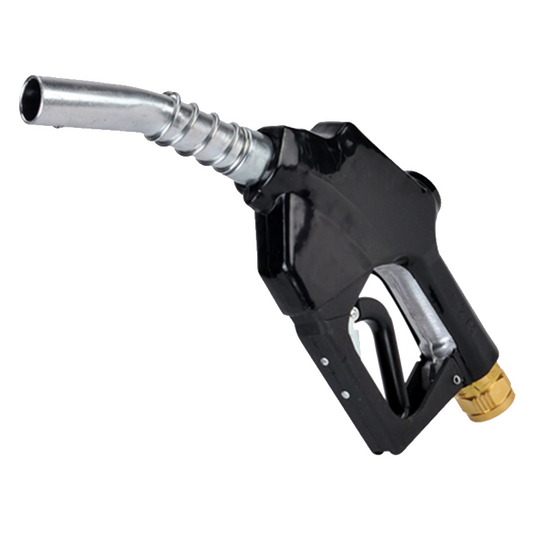

Piusi A120 Automatic Nozzle with Swivel Diesel 120lpm F00610020
