- Suitable for use with Diesel
- DN32 (1.25") Female NPT Threaded
- First Pass Particulate Removal - 4um DBB8666
- Second Pass Water Removal - 20um DBB0248
- Replacement Element Particulate - DBB8666
- Replacement Element Water - DBB0248
- Target ISO cleanliness 14 / 13 / 11
- Flow Rate up to 189lpm
- Maximum Working Pressure 350psi
- Mobile service trucks
- Slip tanks, D-tanks, Self Bunded Tanks
- Fuel dispensers
- Other tight spots and low volume applications
- Install on pressure side of pump with arrows pointing in direction of flow
- Allow 11/2 in / 38 mm clearance for servicing filter
- Lubricate filter and head O-rings with clean oil or diesel
- Install filter on head by spinning clockwise
- Use a Bahco strap-wrench to tighten
- Service filter when flow slows or predetermined differential pressure is reached
- (varies based on pump spec, system dP and clean filter dP)
- Isolate filter and relieve pressure prior to servicing
- Loosen filter by rotating counter clockwise using strap-wrench
- Install clean filter by rotating clockwise, using strap-wrench to tighten
- Dispose of used filter appropriately
Features
What's in the Box
Part Number |
Description |
Qty |
P570330 |
CFLS Single Head 1 ¼” NPT |
2 |
P573642 |
Threaded Adapter Length: 41mm Thread Size: 1 ¼” NPT |
1 |
P568666 |
< 4 Micron @ Beta 2000 |
1 |
P570248 |
SAP Water absorbing Filter (Not suited for ethonol or ethonol blends) |
1 |
P573681 |
Pressure Gauge 0-60 psi Thread Size: 1/8” NPT Face Diameter: 1-½” |
2 |
P73682 |
Gauge Adapter Inlet Diameter: Male 9/16” - 18 UNF” Outlet Diameter: Female 1/8” NPT Length: 43mm |
2 |
Applications
Installation
Replacement and Maintenance

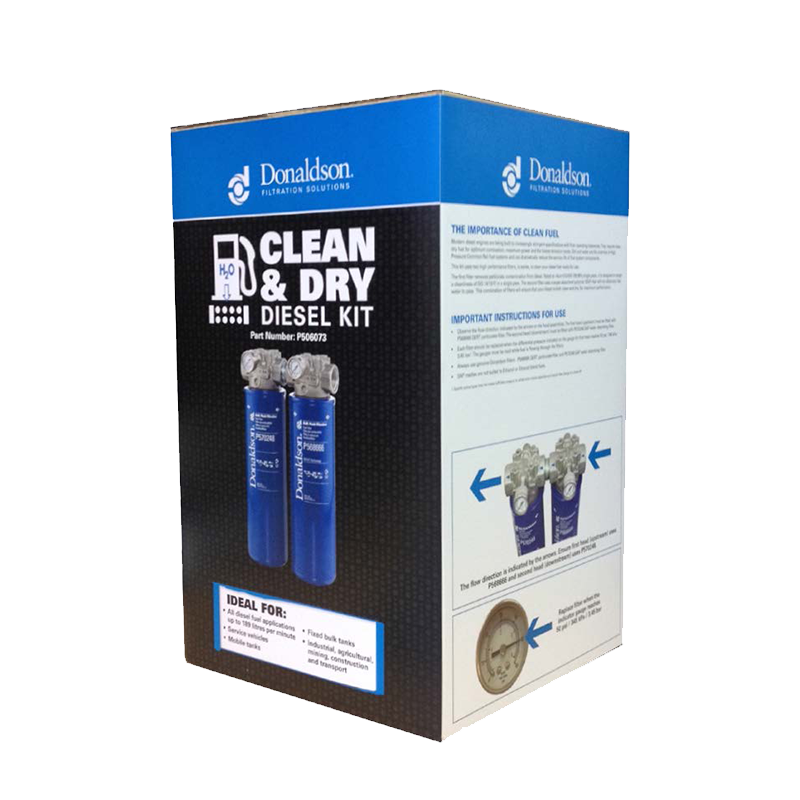

Donaldson Clean and Dry Diesel Filtration Kit 189LPM P506073
SKU: P506073Donaldson Clean and Dry Diesel Filtration Kit 189LPM P506073
Other payment options
The Basics

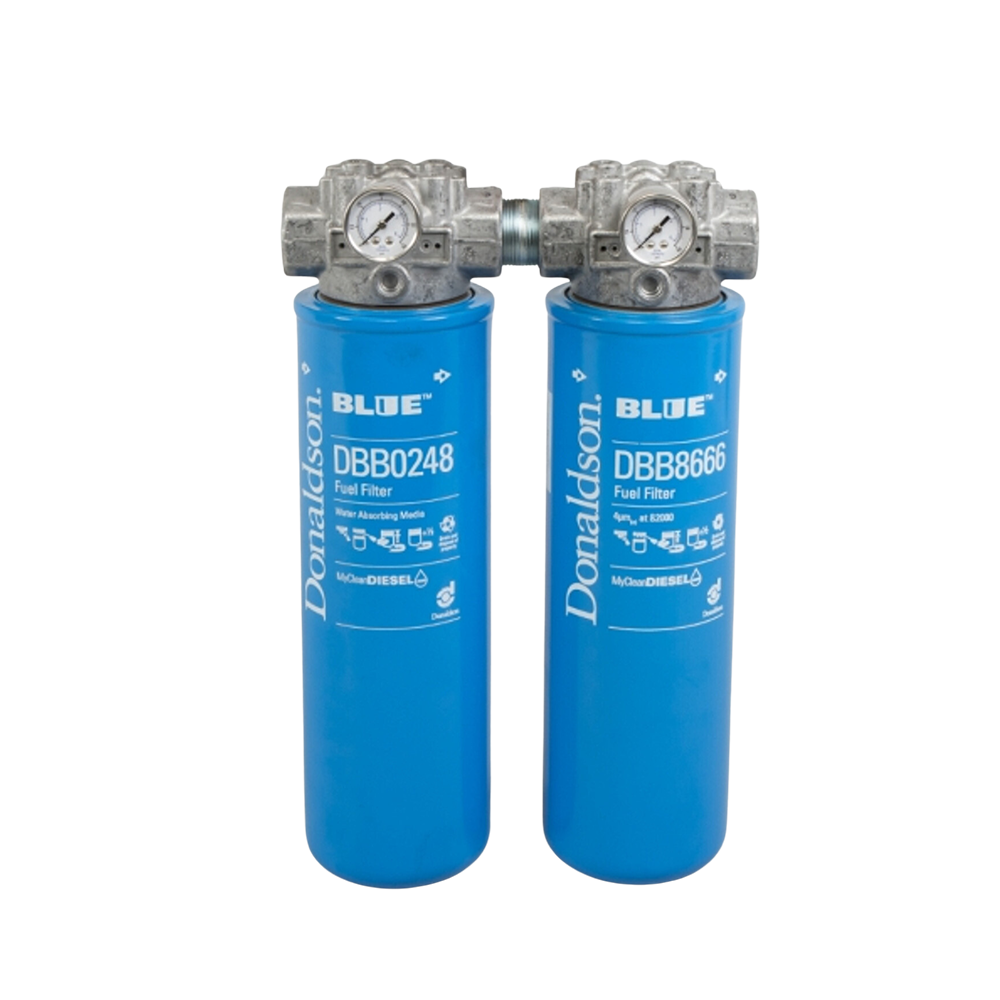

The Donaldson P506073 Clean and Dry Diesel Filtration Kit, from GO Industrial, uses two high performance filters, in series, to clean and dry your diesel fuel ready for use.
For complete protection, Donaldson recommends installing a P506159 TRAP breather to keep air-borne contamination and moisture from entering your tank.
Modern diesel engines are being built to increasingly stringent specifications with finer operating tolerances. They require clean, dry fuel for optimum combustion, maximum power and the lowest emission levels. Dirt and water are the enemies of High Pressure Common Rail fuel systems and can dramatically reduce the service life of fuel system components.
The first filter removes particulate contamination from diesel. Rated at 4um, it is designed to target a cleanliness of ISO 14/13/11 in a single pass. The second filter uses a super absorbent polymer (SAP) that will not allow free water to pass. This combination of particulate and water removal filters will ensure that your diesel is both clean and dry, for maximum performance.
Customers also purchased
Donaldson Tank Breather TRAP DN40 (1 1/2") F BSP P506159
Donaldson Filter Element Water Removal DBB0248
Donaldson Filter Element 4um Particulate DBB8666
Donaldson Filter Element 7um Particulate DBB8777
- Suitable for use with Diesel
- DN32 (1.25") Female NPT Threaded
- First Pass Particulate Removal - 4um DBB8666
- Second Pass Water Removal - 20um DBB0248
- Replacement Element Particulate - DBB8666
- Replacement Element Water - DBB0248
- Target ISO cleanliness 14 / 13 / 11
- Flow Rate up to 189lpm
- Maximum Working Pressure 350psi
- Mobile service trucks
- Slip tanks, D-tanks, Self Bunded Tanks
- Fuel dispensers
- Other tight spots and low volume applications
- Install on pressure side of pump with arrows pointing in direction of flow
- Allow 11/2 in / 38 mm clearance for servicing filter
- Lubricate filter and head O-rings with clean oil or diesel
- Install filter on head by spinning clockwise
- Use a Bahco strap-wrench to tighten
- Service filter when flow slows or predetermined differential pressure is reached
- (varies based on pump spec, system dP and clean filter dP)
- Isolate filter and relieve pressure prior to servicing
- Loosen filter by rotating counter clockwise using strap-wrench
- Install clean filter by rotating clockwise, using strap-wrench to tighten
- Dispose of used filter appropriately
Features
What's in the Box
Part Number |
Description |
Qty |
P570330 |
CFLS Single Head 1 ¼” NPT |
2 |
P573642 |
Threaded Adapter Length: 41mm Thread Size: 1 ¼” NPT |
1 |
P568666 |
< 4 Micron @ Beta 2000 |
1 |
P570248 |
SAP Water absorbing Filter (Not suited for ethonol or ethonol blends) |
1 |
P573681 |
Pressure Gauge 0-60 psi Thread Size: 1/8” NPT Face Diameter: 1-½” |
2 |
P73682 |
Gauge Adapter Inlet Diameter: Male 9/16” - 18 UNF” Outlet Diameter: Female 1/8” NPT Length: 43mm |
2 |
Applications
Installation
Replacement and Maintenance
-
